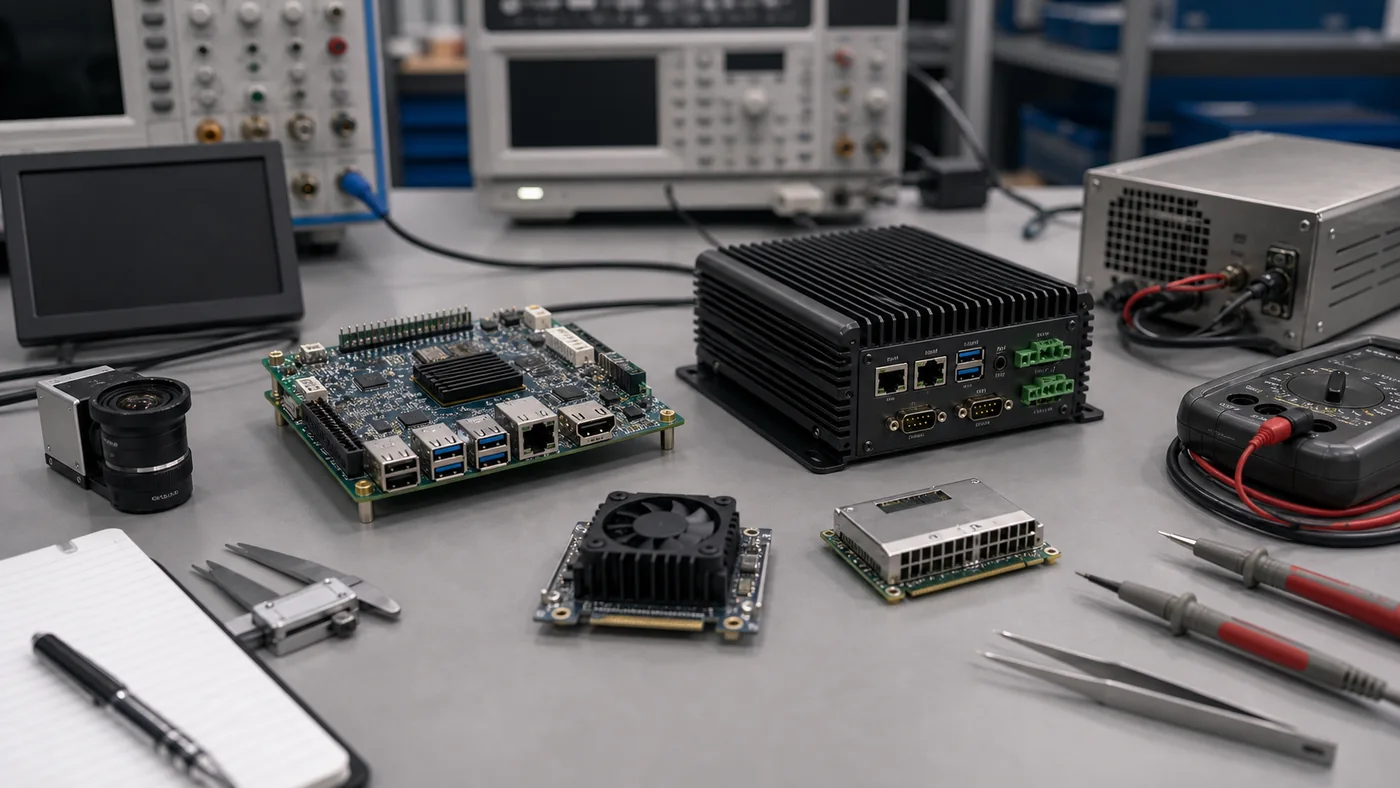

How to Choose an Android SBC for Industrial HMI Projects

Choosing an Android SBC for an industrial HMI project is not the same as buying a development board for a lab demo. A demo board only needs to boot, show a screen, and run an application for a short test. An industrial HMI platform needs to run every day, recover from power loss, survive heat inside an enclosure, drive a real touch display, communicate with controllers, and remain available for production for years.

That difference is where many projects get delayed. A board may look attractive because the CPU is fast or the price is low, but later the team discovers that the LVDS panel needs custom timing, the touch controller is not supported in the Android kernel, RS485 access requires a private SDK, or the board layout does not fit the enclosure. The best Android SBC for industrial HMI is the one that matches the whole product, not the one with the longest specification table.

This guide explains a practical selection process. It is written for product managers, embedded engineers, hardware teams, and software teams who need to turn an Android HMI idea into a manufacturable device.

Start with the Real HMI Use Case

Before comparing chips and memory sizes, define how the HMI will be used. A wall-mounted building automation panel, a factory machine interface, a medical equipment screen, and an EV charger display all look similar from a distance, but their requirements are different.

An industrial machine panel may need RS485, CAN, Ethernet, GPIO, emergency-state handling, strong ESD protection, and predictable boot behavior. A smart building panel may need Wi-Fi, Bluetooth, speaker output, microphone input, cloud connectivity, and a thin enclosure. A medical touchscreen device may need stable brightness, easy cleaning, controlled user access, and long hardware availability.

The first selection document should answer basic questions:

• What display size and resolution are required?
• Is the device installed indoors, outdoors, in a cabinet, or on a machine?
• Which control interfaces are required: RS485, CAN, GPIO, Ethernet, USB, relay, or UART?
• Will the HMI run one locked application or a broader Android environment?
• Does the product need OTA updates?
• What is the expected production life?
• What is the acceptable boot time?
• What temperature range must be supported?

This early work prevents the team from choosing a board that is powerful but not product-ready.

Evaluate the SoC for UI Load, Not Only CPU Frequency

Android HMIs depend on CPU, GPU, memory bandwidth, storage speed, display controller capability, and thermal design. CPU frequency alone is a weak signal.

A simple 7-inch control panel with static buttons, settings pages, and status indicators may run well on a quad-core ARM Cortex-A55 class SoC with 2GB RAM. A 10.1-inch or 15.6-inch HMI with animated charts, video, WebView dashboards, camera preview, or multiple background services may need 4GB RAM, stronger GPU performance, and faster eMMC.

The display resolution also matters. An 800 x 480 display is much easier to drive than a 1920 x 1080 display. If the UI uses large images, transparency, gradients, web components, or video overlays, the system needs enough graphics margin. A board that feels smooth during a simple launcher test can become sluggish when the real HMI application is installed.

For engineering evaluation, create a test APK that is close to the real product:

HMI performance test plan:
1. Boot directly into the HMI application.
2. Load the largest dashboard page.
3. Run communication services in the background.
4. Switch pages repeatedly for 24 hours.
5. Log RAM use, frame drops, CPU load, and temperature.
6. Repeat after OTA update and power-cycle testing.

This kind of test reveals more than a benchmark score.

Confirm Display Interface Support

Display integration is usually the highest-risk part of an Android HMI project. Common display interfaces include RGB, LVDS, MIPI DSI, HDMI, and eDP. Each has different implications for cable length, signal integrity, board layout, enclosure design, and software support.

Do not assume that a board supports a display just because the connector looks similar. The Android kernel, device tree, panel driver, backlight circuit, power sequencing, and touch controller must all work together.

If the product uses a custom display assembly, work with a display partner early. A supplier such as Avontek can help align LCD module, touch panel, cover glass, optical bonding, cable, and embedded board requirements before the mechanical design is locked.

Treat Touch as a System-Level Requirement

A capacitive touch panel is not just a USB or I2C peripheral. It is affected by LCD noise, cover glass thickness, grounding, ESD design, cable routing, power supply quality, enclosure material, and firmware tuning.

For industrial HMI, test touch behavior under realistic conditions:

• With gloves if required
• With moisture or cleaning residue if expected
• Near motors, relays, or noisy power supplies
• At low and high temperatures
• With the final cover glass and enclosure
• During display brightness changes
• During long-run operation

The Android input driver should support multi-touch reporting, proper orientation, wake behavior, and recovery after suspend or power events. If the touch controller occasionally disappears after reboot, the product is not ready.

Check Industrial Interfaces from the App Layer

Many boards list UART, RS485, CAN, GPIO, and relay interfaces. That is only the hardware side. The Android application still needs a stable way to access them.

For each interface, ask:

• Is there a kernel driver?
• Is there a documented Android API or SDK?
• Does access require root?
• Can the interface be used from a normal kiosk application?
• Is there sample code?
• How does it behave after suspend, reboot, or OTA update?
• Is isolation or ESD protection required?

For RS485 and CAN, verify direction control, baud rate stability, termination, and protocol timing. For Ethernet, test reconnection after cable removal. For USB, test hot-plug and device enumeration. For GPIO, confirm voltage levels and protection.

Android BSP Quality Is a Major Selection Factor

An Android SBC is only as good as its BSP. A strong BSP includes kernel source, device tree files, bootloader configuration, Android build environment, flashing tools, driver documentation, update tools, and vendor support.

Industrial HMI products often need:

• Custom boot logo and animation
• Auto-start application
• Hidden status and navigation bars
• Kiosk mode
• Restricted settings
• Watchdog behavior
• Serial/CAN/GPIO service access
• OTA update and recovery
• Stable sleep and wake behavior
• Removed consumer apps and unused services

These tasks are not always possible from the application layer. They often require system image customization. If the supplier cannot support BSP customization, the project may get stuck after the prototype stage.

Thermal and Mechanical Fit

Industrial HMIs are often mounted in sealed or semi-sealed enclosures. Heat can build up behind the display, near power circuitry, or around a fanless SBC. A board that runs cool on an open bench may throttle inside a wall panel.

Thermal evaluation should be done with the real display, backlight brightness, enclosure, power supply, and software workload. Measure SoC temperature, enclosure surface temperature, and internal hot spots. Test at high ambient temperature, not only in an air-conditioned office.

Mechanical layout matters too. Connector direction, cable bend radius, antenna position, screw holes, heat spreader location, and service access can all affect assembly. If the SBC blocks the display cable or pushes the enclosure thickness beyond the target, the board is wrong for the product even if the software works.

Production and Lifecycle Questions

For an industrial HMI, long-term supply is part of engineering. Ask about SoC availability, memory alternatives, eMMC lifecycle, Wi-Fi module continuity, connector sourcing, display module lifecycle, and hardware revision policy.

Also ask how production will be handled:

• How is firmware flashed?
• How are serial numbers and MAC addresses programmed?
• Is there a touch and LCD test procedure?
• Can the supplier provide aging test support?
• Are hardware revisions controlled?
• Can the same BSP support future display variants?

These details become important when moving from 20 prototypes to 2,000 production units.

Selection Scorecard

Use a simple scorecard to compare candidates:

This prevents the team from overvaluing CPU speed and undervaluing integration work.

Conclusion

The right Android SBC for industrial HMI is a complete product platform, not just a powerful board. It must support the chosen display, touch panel, enclosure, Android customization, industrial communication, thermal limits, production process, and lifecycle plan.

The best time to evaluate these factors is before mechanical design and software architecture are fixed. A careful selection process reduces driver issues, display surprises, field failures, and redesign cost. For industrial HMI products, the practical question is not “Which board is fastest?” but “Which platform can become a stable product?”
