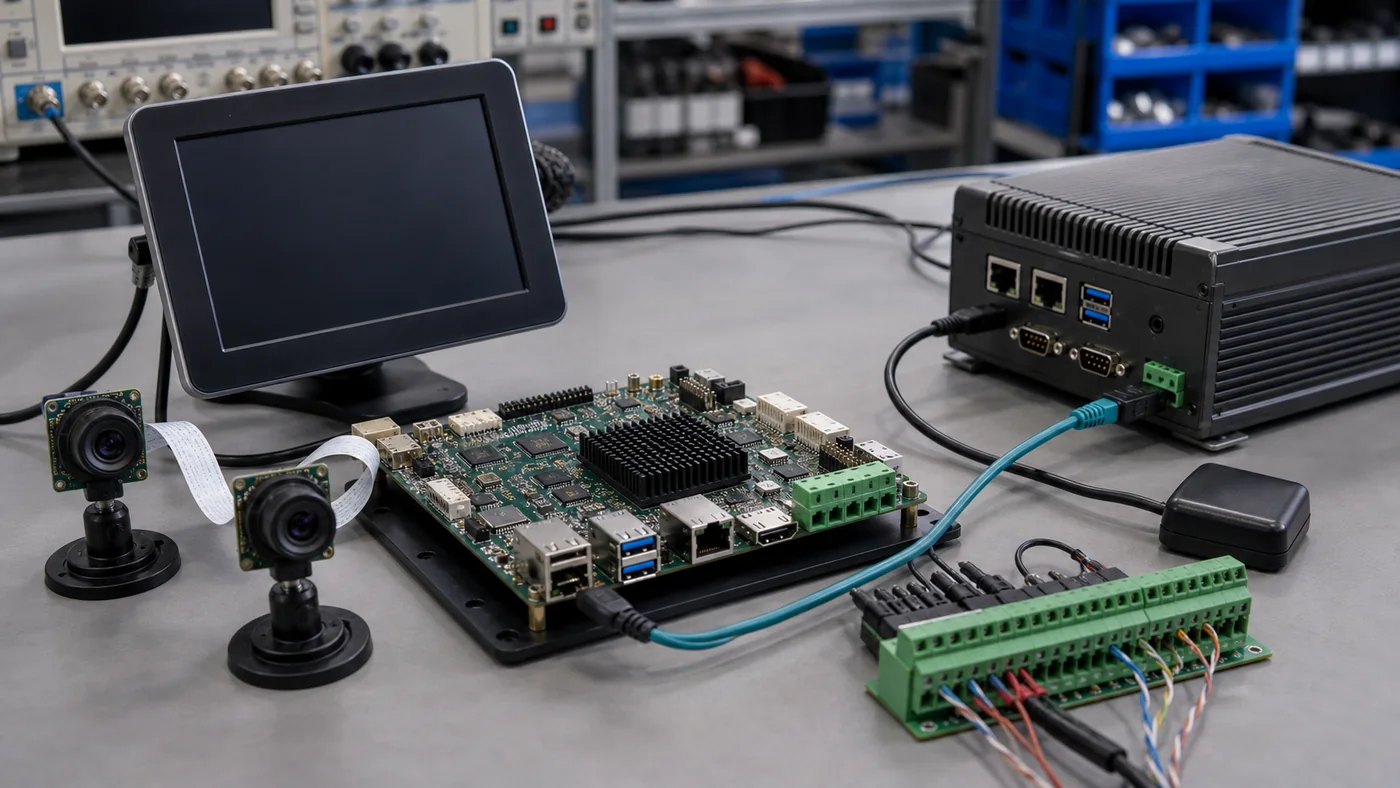

CAN Bus, RS485, and Ethernet on Android SBCs: Choosing the Right Industrial Interface

Industrial Android SBC products often need to communicate with equipment outside the touchscreen or gateway itself. The most common interface choices are CAN Bus, RS485, and Ethernet. Each interface has a different history, electrical behavior, software model, and application fit. Choosing the right one affects hardware cost, cable design, protocol reliability, Android BSP work, and field support.

In many products, the Android SBC is the user interface or edge computer, while another controller handles real-time machine behavior. The Android system may display data, send configuration commands, log events, upload information to the cloud, or provide local service tools. For that role, the communication interface must be reliable and understandable.

This article compares CAN Bus, RS485, and Ethernet for Android SBC products.

Why Interface Choice Matters

Industrial communication problems can be difficult to diagnose in the field. A display issue is visible. A communication issue may appear as missing data, delayed commands, random timeout, bus errors, or customer complaints that are hard to reproduce.

The interface choice should reflect cable length, noise environment, device count, bandwidth, protocol, isolation needs, and software access. It should not be chosen only because the board already has a connector.

The Android application must also have a stable way to use the interface. Android does not expose every industrial interface through standard app APIs. Vendor SDKs, native services, device files, HAL layers, or custom permissions may be needed.

CAN Bus

CAN Bus is a message-based communication system widely used in vehicles, battery systems, robotics, industrial equipment, and distributed control. It is robust, supports multiple nodes, and handles arbitration at the bus level.

CAN is suitable when devices exchange structured messages with known identifiers. It is not designed for high-bandwidth file transfer, but it is excellent for status, commands, sensor data, and control messages.

For teams that already know CAN is required, the more focused guide to CAN Bus on Android SBCs goes deeper into SocketCAN, Android HAL options, and physical-layer decisions.

Use CAN Bus when:

• Equipment already uses CAN
• Multiple nodes share the same bus
• Message priority matters
• The environment is electrically noisy
• Deterministic message handling is useful
• The protocol is based on CANopen, J1939, custom CAN frames, or similar systems

On Android SBCs, CAN may be exposed through a kernel CAN driver, external controller, or USB adapter. Built-in board-level CAN with a proper transceiver is usually better for production than a loose USB adapter.

RS485

RS485 is widely used for Modbus RTU and other serial field protocols. It is simple, low cost, and practical for multi-drop communication over long cable runs. Many sensors, meters, controllers, inverters, and building automation devices support RS485.

Use RS485 when:

• The field device uses Modbus RTU
• Data rate is moderate
• Cable runs are long
• Devices are simple and cost-sensitive
• The system uses master-slave polling
• Existing equipment already exposes RS485

RS485 evaluation should include baud rate, termination, biasing, isolation, direction control, and timing. Half-duplex direction control is a common source of problems. If the transceiver switches too late or too early, frames may be corrupted.

Android applications need reliable serial access. Some vendors provide Java APIs, while others require native code or system permissions.

Ethernet

Ethernet is the best choice when the product needs IP networking, higher bandwidth, standard infrastructure, cloud connectivity, web APIs, MQTT, HTTP, remote service, or local network integration.

Use Ethernet when:

• Bandwidth matters
• The system uses TCP/IP or UDP
• The product connects to routers, switches, or servers
• Remote monitoring is required
• Cloud connection is part of the product
• Firmware updates need stable networking
• Multiple services run over the same cable

Ethernet is familiar, scalable, and easy to integrate with modern software. However, it still needs industrial validation: ESD, surge, connector retention, link recovery, DHCP behavior, static IP support, and reconnection after cable loss.

Comparison Table

Many products use more than one. An Android HMI may use RS485 to communicate with a controller and Ethernet to send data to a server. A gateway may use CAN Bus for equipment data and Wi-Fi or Ethernet for cloud connectivity.

Android Software Access

The hardware interface is only half the story. The Android application needs a stable access path.

Possible access models include:

• Java SDK from board vendor
• Native C/C++ library
• JNI bridge
• Android system service
• HAL integration
• Device file with custom permission
• Socket-based local service

For maintainability, a local service is often cleaner than giving every app direct hardware access. The service can manage reconnection, logging, permissions, and protocol parsing.

Example architecture:

Android App
  -> Local Communication Service
      -> RS485 / CAN / Ethernet driver layer
          -> Field devices

This separation makes the UI less dependent on low-level timing.

Hardware Design Considerations

Industrial interfaces need protection. For CAN and RS485, check transceiver quality, termination, biasing, isolation, ESD protection, connector type, and grounding strategy. For Ethernet, check PHY quality, magnetics, surge protection, and connector retention.

Isolation may be required when the Android SBC connects to equipment with different ground potential. Without isolation, noise or faults can damage the board or cause unstable communication.

Cable routing also matters. Keep noisy power lines away from communication cables. Use proper twisted pair wiring where required. Avoid long unshielded runs in high-noise environments.

Protocol Testing

Do not only test “port open” and “send data.” Test the real protocol.

For RS485 Modbus:

• Test multiple slave devices.
• Test timeout and retry behavior.
• Test invalid CRC.
• Test bus disconnect.
• Test long cable length.
• Test direction control under load.

For CAN:

• Test bus load.
• Test error frames.
• Test missing node behavior.
• Test bitrate mismatch.
• Test recovery after bus-off.

For Ethernet:

• Test DHCP renewal.
• Test static IP.
• Test cable unplug and reconnect.
• Test router restart.
• Test long-run MQTT or HTTP connection.

Security

Ethernet-connected Android SBCs need security planning. If the product connects to a factory network or cloud server, use encrypted communication, authentication, restricted services, and controlled update paths.

CAN and RS485 are often treated as local and trusted, but they can still be attack surfaces if exposed through service ports or gateways. Validate commands and avoid blindly trusting field data.

Selection Rules

Choose CAN Bus when the equipment network is message-based, multi-node, and already uses CAN. Choose RS485 when the product connects to Modbus or simple field devices over long cable. Choose Ethernet when the product needs IP networking, cloud, remote management, or higher bandwidth.

If more than one interface is needed, select an Android SBC that supports all required interfaces cleanly from both hardware and software sides.

Conclusion

CAN Bus, RS485, and Ethernet each solve different industrial communication problems. A strong Android SBC product does not simply expose connectors; it provides stable electrical design, driver support, application access, protection, and recovery behavior.

Before production, test real protocols, real cable lengths, real noise conditions, and real Android application behavior. Communication reliability is part of product reliability.
