Android SBC RAM Size: When 2GB, 4GB, or 8GB Is Enough

A panel that runs smoothly after boot can still reload its interface when a technician opens diagnostics. That is the wrong moment to discover the memory budget was based on a demonstration screen.

For Android SBC RAM size, start with the complete application, not the number of CPU cores. A constrained single-purpose interface may fit in 2GB. A richer HMI often deserves a 4GB evaluation board. Multiple WebViews, camera processing, or local inference can justify testing 8GB. These are starting points for measurement, not Android compatibility guarantees.

The useful question is whether the smallest supported configuration survives the busiest credible operating sequence without unacceptable pauses, lost state, or killed services. This article provides a sizing method; it does not present benchmark results for a particular board.

1. What the Installed RAM Must Actually Hold

The application heap is only one part of the bill. The kernel, Android framework, native libraries, graphics allocations, vendor services, and filesystem cache also occupy memory. Some physical RAM may be reserved for firmware, secure execution, or device-specific buffers before Android reports its usable total.

Write the exact BSP build beside every measurement. Two boards with the same SoC and RAM capacity can ship with different Android releases, graphics drivers, installed services, and reservation settings. Comparing their free-memory numbers without those details can lead to the wrong purchase.

Low free RAM alone is not a failure. Cache is useful, and the operating system can reclaim some of it. Conversely, a comfortable-looking idle snapshot does not prove the system will tolerate a burst of camera buffers or a large database operation. Watch what happens during transitions.

Android’s low memory killer daemon responds to memory pressure and can terminate less essential processes to preserve responsiveness. A service that remains alive on the development board may therefore disappear on a smaller production variant. zRAM can reduce the physical space occupied by compressible pages, but it consumes RAM itself and requires CPU work. It is not a second bank of physical memory.

Reserve a separate line in the budget for future software. Do not hide that allowance inside an assumed compression ratio. A signed-off industrial Android HMI includes diagnostics and field servicing, not just the screen shown at the sales demonstration.

2. A Useful Starting Point for 2GB, 4GB, and 8GB

The following table describes evaluation priorities. It is deliberately not a promise that every application in a row will fit.

Start development on enough RAM to avoid blocking the software team. Then test the intended production capacity early. Waiting until the application is feature-complete makes a reduction from 8GB to 2GB a software redesign disguised as a purchasing decision.

Do not assume RAM capacity and memory bandwidth increase together. A larger package may retain the same bus width and data rate. Ask the board supplier for the actual memory organization and supported operating points.

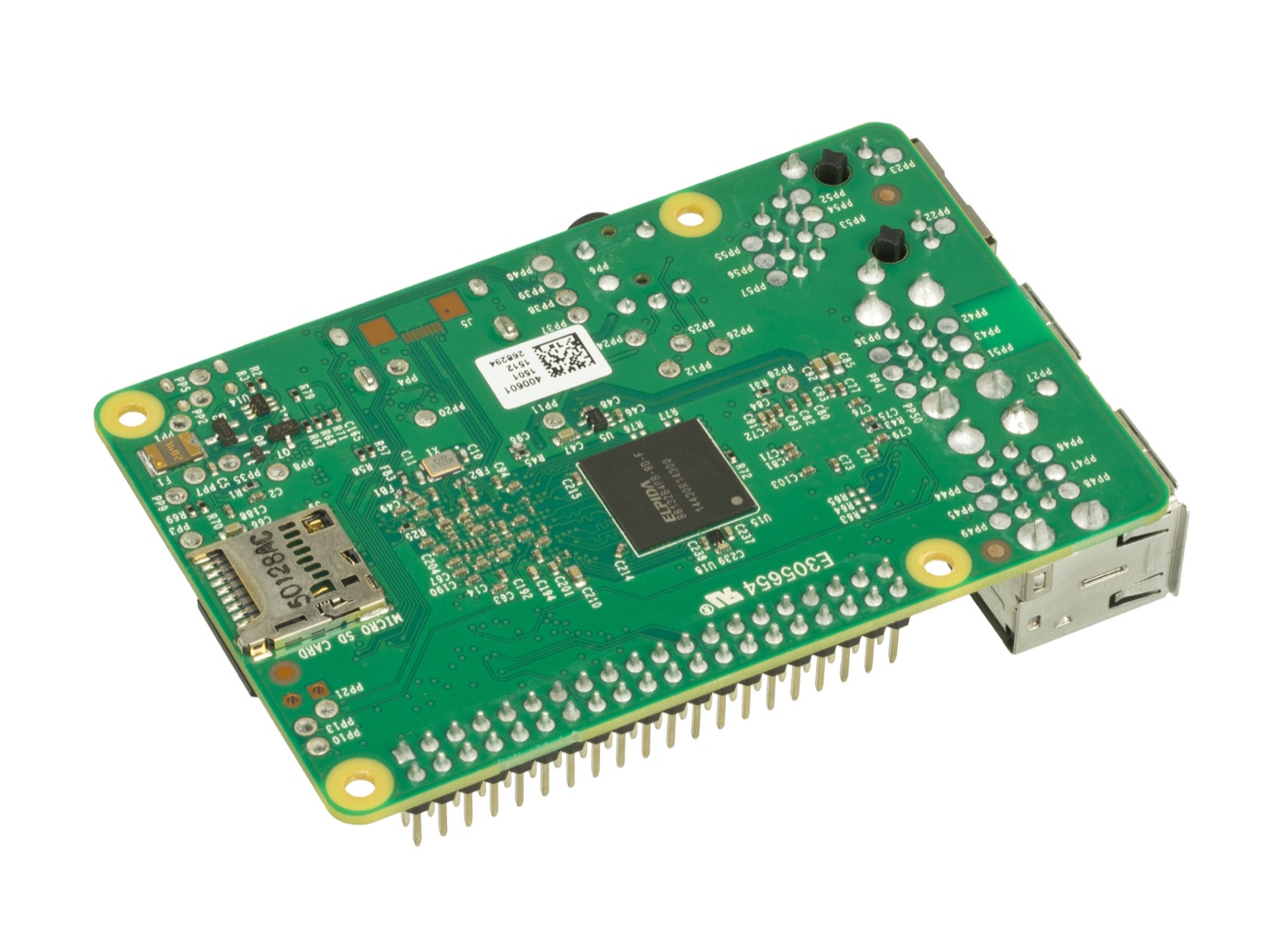

The installed package also has to match the board layout, boot firmware, and memory initialization code. On a soldered-memory SBC, upgrading later is generally a board-variant decision, not a field operation with a spare DIMM. Temperature grade and approved part substitutions matter as much as the capacity printed on the quotation.

3. Graphics and WebView Need Their Own Budget

A simple calculation helps expose assumptions. An uncompressed 1920 × 1080 buffer at four bytes per pixel occupies 8,294,400 bytes, approximately 7.91MiB. Three such buffers occupy approximately 23.73MiB.

That is one buffer chain, not the entire display subsystem. Additional layers, decoded images, off-screen rendering targets, camera queues, and driver allocations can require more memory. Compression, alignment, pixel format, and the compositor’s implementation also change the real result. Do not multiply the panel resolution by four and call the answer the graphics budget.

WebView deserves workload-specific testing because page content changes the working set. A mostly static settings page is different from a dashboard with a large document tree, charts retaining historical samples, and high-resolution images. Test the actual web application with the intended WebView version and production assets. “Uses HTML” is not a memory requirement.

Likewise, a compressed JPEG’s file size says little about its decoded memory footprint. An image loaded at full resolution and then displayed as a small thumbnail can waste memory without changing the visible result. Fix those allocations before increasing the hardware specification.

For camera products, record resolution, pixel format, queue depth, concurrent streams, and whether inference makes extra copies. Zero-copy paths depend on the pipeline and drivers; they should be demonstrated, not assumed from a hardware feature list. More RAM may keep a pipeline alive while leaving its frame rate unchanged.

4. Measure a Sequence, Not a Screenshot

Use a representative production image on both candidate RAM variants. Keep the display mode, peripherals, application version, and dataset the same. Developer utilities should not quietly account for the difference between them.

On an authorized development device, these read-only Android diagnostics provide a starting point:

adb shell dumpsys meminfo
adb shell dumpsys meminfo com.example.hmi
adb shell dumpsys procstats --hours 3

Replace the example package name with the application under test. Availability and output vary with Android version and permissions. Google’s dumpsys documentation explains the memory reports, including proportional set size, or PSS, which apportions shared pages. Do not sum process RSS values as if all shared pages were separate physical allocations.

Record whole-system pressure alongside application memory. Keep timestamps for visible frame stalls, process restarts, allocation failures, and background-service interruptions. A larger heap is not automatically a leak: an application may intentionally retain a bounded cache. The useful distinction is whether the working set settles after repeated cycles or continues growing.

Repeat the same user journey after the database and logs reach representative field sizes. A clean factory image is the easiest case. Include a network outage and reconnection if the software queues data locally; deferred work often arrives as a burst when connectivity returns.

Keep the original traces. A report containing only average RAM use loses the peaks that usually drive sizing. Screenshots can illustrate the run, but timestamped logs make regressions comparable after a BSP update.

5. Put the Awkward Operating States in the Test Plan

Use the product’s actual update policy. If the application is intentionally stopped during installation, test that state instead of inventing concurrency that cannot occur. If the device must remain usable during download or verification, measure it that way.

Run long enough to include scheduled jobs and the suspected growth pattern. A fixed “24-hour test” is not a universal proof of stability; some failures depend on a particular operation count, dataset size, or reconnect sequence. Define those triggers explicitly.

Separate memory pressure from storage delays. Slow embedded flash storage can make application loading or database work appear like a RAM problem. If the process survives but blocks on I/O, buying more RAM may only mask the symptom with additional cache.

An illustrative acceptance target might prohibit foreground-process restarts and cap the worst interaction delay during the specified workload. The actual latency limit belongs to the product requirements. “No crash” is too weak for an operator interface that freezes during every history query.

6. Leave Headroom Without Concealing a Leak

Headroom is a design allowance, not a number Android guarantees. Estimate it from planned features, variation between devices, maintenance tasks, and measured peaks. A provisional 20–30% allowance can be a useful discussion point, but it needs a clearly defined denominator and validation; it is not a platform requirement.

Compare candidates using the same decision sheet:

• installed and Android-visible memory;
• workload version and largest supported dataset;
• process survival and interaction latency;
• pressure events and swap behavior;
• remaining allowance for approved future features;
• unit-cost difference and board-variant availability.

If memory grows on every screen transition, investigate retained objects, unreleased native resources, or unbounded queues. Doubling RAM may simply double the time to failure. If the working set is stable but legitimate concurrent tasks exceed capacity, a larger configuration is a sound engineering choice.

Freeze the RAM part and BSP combination in the production baseline. A supplier’s replacement memory may require fresh initialization parameters and regression testing even when its capacity is unchanged. That belongs in SBC lifecycle planning, not in an informal purchasing note.

The final recommendation should fit in one sentence backed by a trace: this board configuration meets these operating scenarios, on this software build, with this reserved growth allowance. That is more useful than declaring that every Android panel needs 4GB, or that 8GB is automatically future-proof.
