Android SBCs in Set-Top Boxes: Powering the Next Generation of Smart Entertainment Devices

Introduction

The modern living room is evolving into a connected multimedia hub.
Televisions are no longer passive screens — they have become gateways to streaming platforms, gaming, and smart home ecosystems. At the heart of this transformation lies a category of devices known as set-top boxes (STBs), and more specifically, Android-based SBCs (Single Board Computers) that power them.

Android SBCs have rapidly emerged as one of the most versatile and cost-effective platforms for building set-top boxes. They combine powerful ARM processors, rich multimedia support, and flexible software environments in a compact form factor.
This article examines how Android SBCs have revolutionized STB development, what design factors engineers should consider, and where the technology is heading next.

What Is an Android SBC?

An Android SBC (Single Board Computer) is a self-contained embedded computing platform that runs the Android operating system.
It integrates essential components such as:

• CPU and GPU (System-on-Chip)
• Memory (RAM, eMMC/SD storage)
• Video and audio interfaces
• Connectivity options (Wi-Fi, Ethernet, Bluetooth)
• Peripheral I/O (USB, UART, SPI, I²C)

In the context of set-top boxes, the Android SBC serves as both the media engine and the user interface controller, allowing consumers to stream, browse, and interact with digital content seamlessly.

Why Android for Set-Top Boxes?

1. Rich Multimedia Ecosystem

Android provides an extensive framework for multimedia playback, including codecs, DRM (Digital Rights Management), and hardware acceleration through MediaCodec APIs.
This makes it ideal for supporting popular streaming platforms, video-on-demand services, and gaming applications.

2. Customizable and Scalable

Unlike proprietary STB software stacks, Android allows OEMs and ODMs to customize system UI, integrate branding, and adapt firmware to regional requirements.
Manufacturers can reuse the same Android base system across multiple product models, significantly reducing development cost and time-to-market.

3. Mature Developer Community

Android’s vast developer ecosystem shortens the learning curve.
Whether for UI development in Java/Kotlin or low-level integration via C/C++ HAL layers, engineers benefit from robust tools like Android Studio, ADB, and fast prototyping environments.

The Architecture of an Android-Based Set-Top Box

A typical Android STB built on an SBC consists of both hardware and software layers working in harmony.

Hardware Components

1. SoC (System-on-Chip)

   • Multi-core ARM Cortex-A55 or A76 CPU
   • Integrated GPU (Mali or PowerVR) for 4K/8K decoding
   • Optional NPU for AI-based features (voice or content recognition)

2. Memory and Storage

   • DDR3/DDR4 RAM for fast buffering
   • eMMC or NAND flash for OS and app storage

3. Display Interfaces

   • HDMI 2.0/2.1 output for 4K UHD and HDR10 support
   • MIPI DSI or LVDS for compact integrated displays

4. Connectivity Modules

   • Dual-band Wi-Fi and Gigabit Ethernet
   • Bluetooth 5.x for remote controls and peripherals

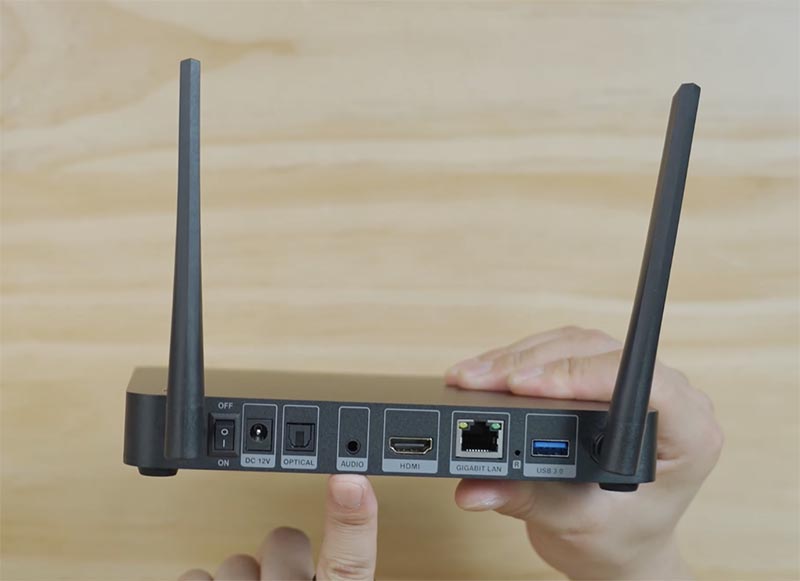

5. Peripheral Ports

   • USB 3.0 for storage expansion
   • IR or RF interface for remote input
   • Optional SD card and UART ports for debugging

Software Stack

1. Android Framework – Provides UI, input, and media services
2. Hardware Abstraction Layer (HAL) – Bridges hardware drivers and Android APIs
3. Linux Kernel – Manages hardware resources, security, and scheduling
4. Middleware and DRM Services – Handles codecs, Widevine, and HDCP compliance
5. Launcher UI / OTT Interface – Custom graphical front-end for user navigation

Together, these layers enable seamless integration between hardware and content delivery platforms.

Key Functionalities of Android SBC Set-Top Boxes

High-Definition Video Playback

Android SBCs with SoCs like Rockchip RK3566 or Amlogic S905X4 can decode H.265 and VP9 4K video streams efficiently.
Hardware acceleration ensures smooth playback without overloading the CPU, maintaining low power consumption even during continuous operation.

Smart Connectivity and IoT Integration

Many Android STBs now support voice commands, Google Assistant integration, and smart home connectivity through Wi-Fi or Bluetooth Mesh.
An SBC with built-in GPIOs and UARTs can also interface with external devices such as lighting controllers, thermostats, or sensors — turning the STB into a smart home gateway.

Enhanced Audio and Surround Sound

Support for Dolby Digital, DTS, and PCM output ensures immersive audio experiences.
Modern SBCs also integrate HDMI-ARC (Audio Return Channel) and optical S/PDIF for high-quality audio streaming to external amplifiers or soundbars.

User Interface and Experience

Android TV launchers and custom OEM UIs provide intuitive navigation and app discovery.
Using Android’s SurfaceFlinger and OpenGL ES, designers can implement smooth animations and fluid touch or remote-based interactions.

Design Considerations for Engineers

1. Performance vs. Cost Optimization

Balancing performance and affordability is crucial.
While high-end SoCs provide premium multimedia capabilities, mid-range processors often deliver sufficient performance for standard STB functions like streaming, browsing, and casting.

2. Power Management

Since set-top boxes run 24/7, energy efficiency is essential.
Android SBCs offer DVFS (Dynamic Voltage and Frequency Scaling) and suspend-to-RAM states to minimize power usage during idle periods.

3. Thermal Design

Compact enclosures can lead to heat buildup.
Passive heatsinks and aluminum casings are common strategies to maintain optimal SoC temperature and ensure long-term reliability.

4. Firmware and OTA Updates

Maintaining user trust requires consistent software updates.
Android’s built-in OTA (Over-the-Air) update framework simplifies firmware delivery for bug fixes, security patches, and feature rollouts.

5. Compliance and Certification

Developers must consider compliance with HDCP, HDMI-CEC, and DRM licensing when targeting global OTT content providers.
Testing against Android Compatibility Test Suite (CTS) and Vendor Test Suite (VTS) ensures proper certification and future upgrade paths.

Case Study: From Concept to Production

A typical Android-based STB project follows several key stages:

1. Hardware Selection – Choosing the right SBC based on performance, power, and cost.
2. BSP Customization – Adapting the Android kernel and HAL for the selected SoC.
3. UI/UX Design – Building a launcher or OTT interface that matches the brand identity.
4. Integration Testing – Ensuring all peripherals (Wi-Fi, HDMI, USB) operate reliably.
5. Certification – Passing Android TV or vendor-specific compliance tests.
6. Production Scaling – Optimizing BOM cost and setting up manufacturing workflows.

This workflow demonstrates the flexibility and scalability Android SBCs offer, even for small and medium-sized manufacturers.

Advantages Over Traditional STB Architectures

By leveraging Android SBCs, companies can merge the performance of dedicated hardware with the adaptability of open software — enabling innovation at lower cost.

Emerging Trends in Android-Based STBs

1. AI and Edge Processing

The inclusion of NPUs (Neural Processing Units) in SBCs like RK3588 is enabling AI-powered content recommendations, gesture control, and voice detection directly on the device, reducing cloud dependency.

2. Multi-Display and Casting Capabilities

Modern Android platforms support multi-screen output — allowing one board to power both TV and secondary displays.
Features like Chromecast built-in or Miracast make user interaction more dynamic.

3. 8K Video and HDR Evolution

The next generation of Android SBCs is moving toward 8K decoding, HDR10+, and HLG standards, enhancing image depth and dynamic range for premium entertainment devices.

4. Modular STB Ecosystem

Manufacturers are adopting SOM (System-on-Module) versions of SBCs to streamline production.
These plug-in modules simplify maintenance, version upgrades, and customization without redesigning the mainboard.

Challenges Ahead

Despite their advantages, Android SBC-based STBs also face certain challenges:

• Content licensing barriers in specific regions
• Fragmentation of Android versions across manufacturers
• Thermal and EMI management in compact enclosures
• Long-term software support beyond product warranty

Addressing these challenges requires careful selection of SoC vendors and long-term firmware maintenance strategies.

Conclusion

Android SBCs have become the backbone of the new generation of smart set-top boxes.
By combining open-source flexibility with high-performance multimedia processing, they empower manufacturers to create feature-rich entertainment systems at an affordable cost.

From seamless 4K streaming to intelligent voice control and IoT integration, Android SBC-based STBs redefine what consumers expect from their home entertainment devices.
As AI and connectivity continue to advance, these compact boards will remain at the center of innovation — powering the future of living room technology.
